Strong weather endurance Transformers Epoxy Resin outdoor CT VT raw material

Name: Strong weather endurance Transformers Epoxy Resin outdoor CT VT raw material
Brand: wenyou
Price: 1 USD

China Strong weather endurance Transformers Epoxy Resin outdoor CT VT raw material wholesale

Brand Name : wenyou

Model Number : 8224A

Certification : ISO9001, ISO14001, SGS, and UL

Place of Origin : China

MOQ : 20kg/pail as sample

Price : Negotiable

Payment Terms : Normally T/T, L/C

Supply Ability : Plenty of raw material in stock

Delivery Time : 7 -10 work days

Packaging Details : 20kg/pail, 220kg/barrel, 1200kg/tank

Classification : Double Components Adhesives

Usage : 12~40.5kV insulators, current & voltage transformers, dry type transformers etc

Application : Indoor medium & high voltage electrical products

Appearance of epoxy resin : White viscous liquid

Viscosity at 40°C : 16000 - 35000mPa.s

Density at 25°C : 1.60 - 1.70g/cm3

Vapor Pressure at 25°C : ＜ 0.01Pa

Flash point : > 150°C

Discription : Strong weather endurance Transformers Epoxy Resin outdoor CT VT raw material

Contact Now

Brief Introduction

Strong weather endurance Transformers Epoxy Resin outdoor CT VT raw material

The LW-8224A is a prefilled Bisphenol-A epoxy resin designed for outdoor use in transformers. It is paired with LW-8224B, a prefilled anhydride curing agent.

Applications

This epoxy resin system is ideal for indoor medium and high voltage electrical products, including 12 to 40.5 kV insulators, current and voltage transformers, and dry-type transformers.

Processing Methods

The material can be processed using a conventional gravity casting method under vacuum or through an Automatic Pressure Gelation (APG) process. The production approach can be customized to fit the client's existing manufacturing processes.

Properties

The system exhibits excellent mechanical and electrical characteristics, outstanding crack resistance, and superior performance in low and high temperature conditions.

Formulation

Epoxy resin	LE-8224A	100 pbw
Hardener	LH-8224B	100 pbw
Color paste	LC series *	3 pbw

Advantage

Strong weather endurance Transformers Epoxy Resin outdoor CT VT raw material

Package Image

Strong weather endurance Transformers Epoxy Resin outdoor CT VT raw material

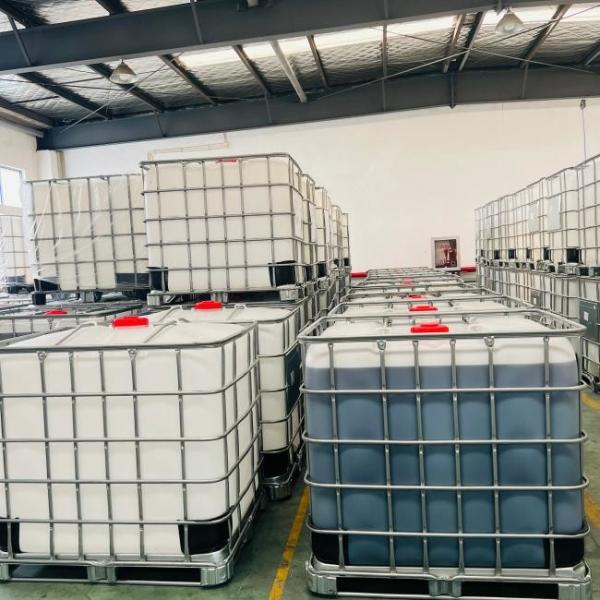

Shipment image

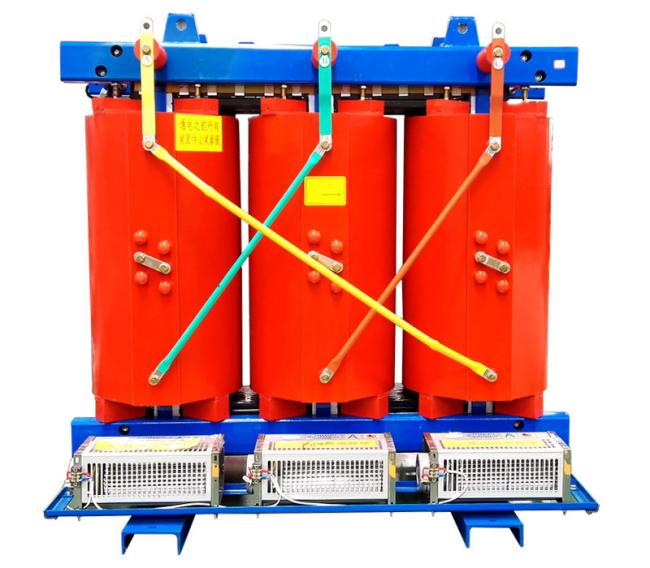

Example application image

Strong weather endurance Transformers Epoxy Resin outdoor CT VT raw material

Strong weather endurance Transformers Epoxy Resin outdoor CT VT raw material Images
